DS12102 Performance Stamped Steel Flexplate Dual PatternMarch 31, 2018
DS12111 Billet Steel Flexplate (Multi-Pattern)March 31, 2018
DS12103 Performance Stamped Steel Flexplate Dual pattern, SFI certified
Uses stock starter.
Fits TH400 / 4L80 (11.5″) and TH350 / 700R4 / 200R4 / Powerglide / etc (10.75″) converter bolt pattern.

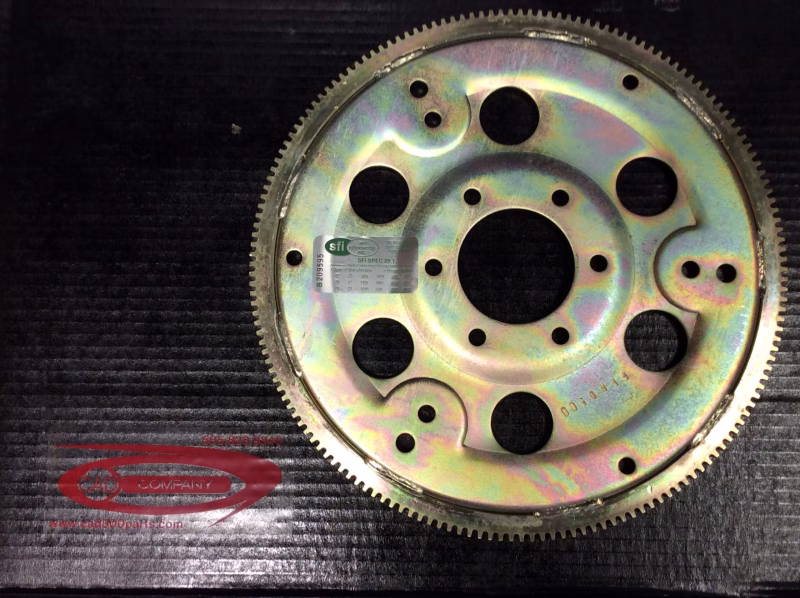

Performance Stamped Steel Flex Plate Dual pattern, SFI certified
When hooking up a Caddy to a Chevy or GMC converter, you have to keep in mind that the bolt pattern on the converter must match the hole pattern on the flexplate. TH-400, 4L80E, and Allison converters generally have the “large” diameter pattern (11.5″), but light duty trannies (‘Glides, TH-350, 700R4, and TH200) have a smaller pattern (10.75″). You cannot safely drill out the stock flexplate, because the smaller circle falls on the stress ridge on the Cad flexplate. Three holes in there, and your chances of blowing the middle out of the flexplate are pretty good. All of our aftermarket and OE replacement flexplates and flywheels have a Cadillac 166 tooth ring gear for use with a stock Cadillac style starter. All are zero balanced like stock and compatible with any 472/ 500/ 425/ 368 Cadillac engine.
|Dimensions||15 × 15 × 2 in|
